Bossweld X Series 350a Inverter Mig/Stick/Tig Welder

Bossweld X Series 350a Inverter Mig/Stick/Tig Welder

  • $4,999.00
    Unit price per
  • Save $259
Tax included. Shipping calculated at checkout.

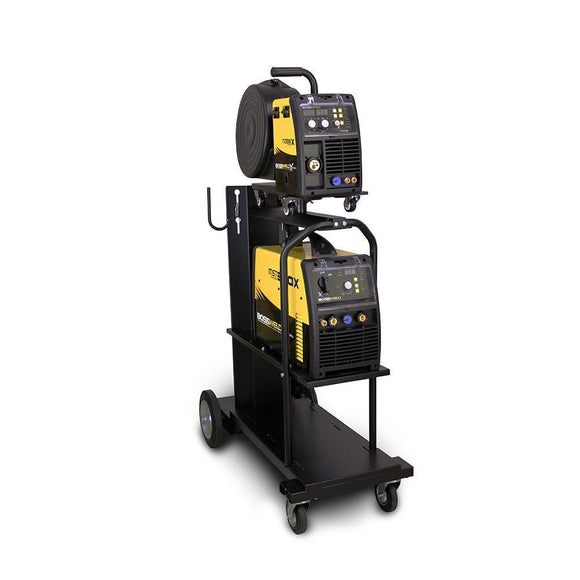

The Bossweld Mobile 350X is a workshop powerhouse; 350 Amps at 60% duty cycle delivers plenty of power to spare. Coupled with the Mobile X wire feeder ensuring smooth and accurate MIG wire delivery. Being a multi-process machine, it provides the additional choice of Stick Electrode and TIG processes.

5 year warranty

  • 350 Amp output
  • MIG /Stick / DC TIG welder
  • Suitable for heavy industrial with 4 Roll wire drive system
  • Digital LED display
  • Synergic control
  • Gas /gasless operation
  • 2T / 4T trigger latching
  • Separate wire feeder
  • 10mt interconnecting cable
  • Suits D200/D300 spools

Standard Air-cooled Package inclusions:

  • MST 350X Inverter Welder
  • Mobile X Wire Feeder
  • Machine Trolley
  • 10m Interconnection Cables
  • 4m Ergon BZ36 MIG Torch
  • 5m Earth clamp
  • 2m Gas Hose
  • Bossweld Twin Gauge Regulator
  • 9/1.2mm V Groove Rollers
  • 2/1.6mm V Groove Rollers
  • Operator Manual

Specifications:

Input power

3 phase 415V

Output current range

MIG 40-350A MMA/TIG 10-350A

Open Circuit voltage

MIG 67V MMA/TIG 14V

I Max

MIG 23A MMA 26A TIG 20A

Ieff

MIG 18A MMA 20A TIG 15A

Duty cycle @ 40Ëš C

60% @ 350A

Insulation Class

IP21S / S

Wire Dia

0.6mm to 2.0mm

Electrode Dia

2.5mm to 5.0mm

Thermal overload

YES

Minimum generator

12.5 KVA

Dimension (mm)

870 x 900 x 480mm

Weight (Kg)

51.2
