Bossweld X Series 180A Inverter MIG/STICK/TIG Welder 10A Plug

Bossweld X Series 180A Inverter MIG/STICK/TIG Welder 10A Plug

Regular price
$745.00
Sale price
$745.00

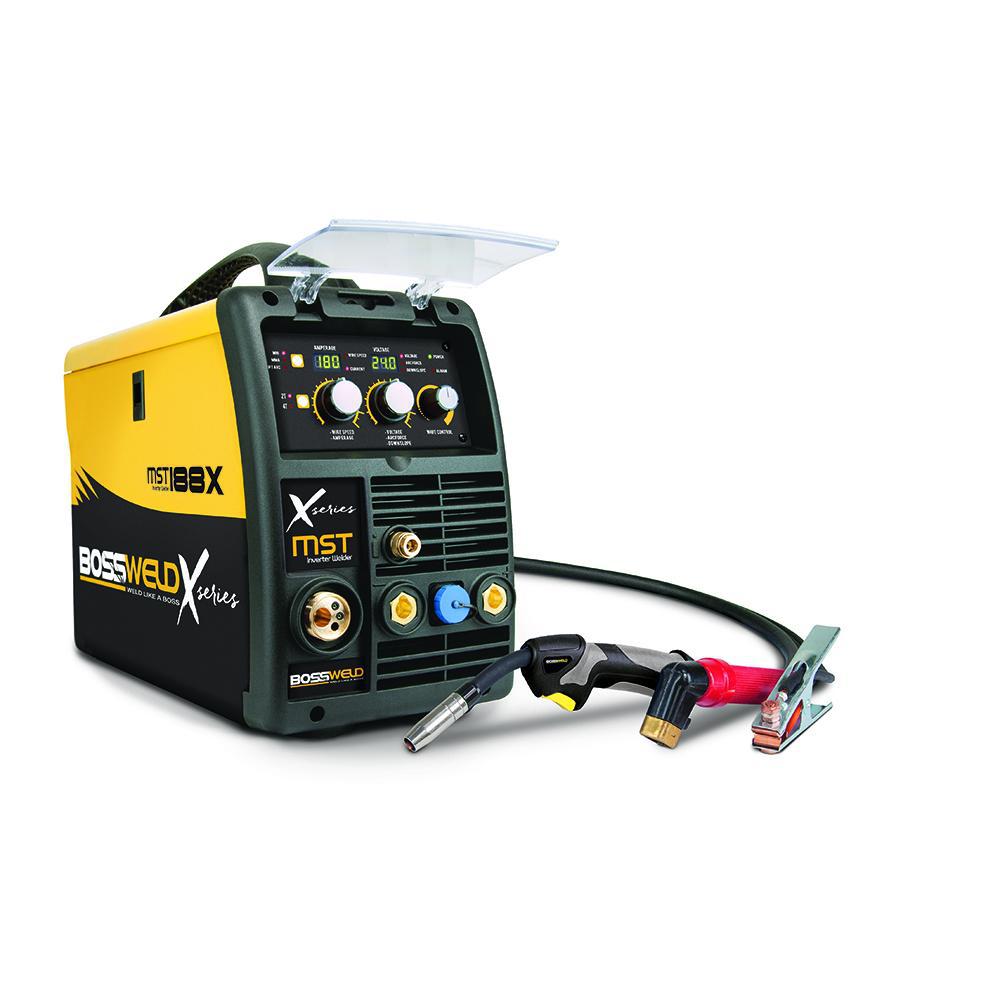

The Bossweld MST 188X is a light weight, portable and robust multi process inverter based welder offering exceptional performance with gas or gasless MIG, Stick (MMA) or DC Lift TIG making this the ideal welder for your next project.

Powerful - 180A pulsed welding output
Portable - Only 12.5kg super light weight and portable
Reliable - Cutting edge inverter technology ensures ultimate reliability
  • Gas/Gasless MIG welder

  • Stick (MMA) up to 3.2mm rods

  • DC Lift TIG (optional TIG torch) with ramp down and post gas.

  • Excellent arc stability

  • Dual Digital Display

  • Stepless Voltage and Wire speed adjustment for Ultimate control

  • 2T / 4T Trigger control

  • Takes both 1KG (D100) & 5KG (D200) MIG wire spools

  •  Spool gun ready



Standard inclusions

  •  MST 188X Inverter Welder
  • 3m Ergon BZ15 MIG torch
  • 3m Twist lock electrode holder and cable
  • 3m 200A earth clamp and cable
  • 2m gas hose
  • Bossweld twin gauge argon regulator
  • 0.8 / 0.9mm V groove rollers (gas wire)
  • 0.8 / 0.9mm Knurled rollers (gasless wire)
  • Operation manual





Input power Single phase230V
Output current range  MIG 40-180A MMA/TIG 10-180A
Open Circuit voltage MIG 58.5V
I Max  MIG 37.5A MMA 44A TIG 29.5A
Ieff MIG/MMA 10A TIG 9.5A
Duty cycle @ 40 Deg C MMA 10% @ 180A
Insulation Class IP21 H
Wire Dia 0.6 to 1.0mm
Electrode Dia  1.6MM to 3.2mm
Thermal overload YES
Minimum generator 9 KVA
Dimension (mm) 550 x 395 x 214
Weight (Kg) 12.5

3 year Warranty
